Understanding TR34 Standards: The Role of FM2 Flooring in Compliance

In industrial, warehousing, and logistics spaces today, the quality of the concrete floor can make or break efficiency, safety, and long-term cost of ownership. At Midas Concrete Floor Solutions, we often work with clients who are keen to understand how standards like TR34 guide the design and execution of high-performance flooring. Among the many classifications under TR34, FM2 (Free Movement 2) is especially important because it finds that sweet spot between precision, durability, and cost.

What are TR34 Standards?

TR34 is a technical report from the UK’s Concrete Society that defines how “free movement” concrete floors must behave—how flat and level they should be—depending on their use. Floors are classified under FM1, FM2, FM3, FM4 etc., each with defined tolerances for flatness and levelness. These tolerances determine how well forklifts, pallet trucks, shelving, and other material handling equipment can move safely and efficiently. When a floor meets TR34 criteria, you reduce problems like uneven wear, structural stress, poor load distribution, and even safety risks. Good compliance helps avoid long — and expensive — remediation work later on.

What is FM2 Flooring?

FM2 flooring under TR34 is a concrete floor classification that balances durability, levelness, and cost, making it ideal for warehouses and industrial facilities.

FM2 is a category under the TR34 standards that is often chosen for heavy industrial and large warehouse spaces. Compared to FM1, it’s less exacting in terms of flatness but still very demanding in levelness and usable for most operational needs. FM2 is preferred when you have wide-aisle racking, reach trucks, or when heavy loads must be moved over the concrete with minimal vibration or disturbance. In TR34’s 4th edition, for example, the specification for FM2 in terms of Property E (levelness over longer distances) and Property F (flatness over shorter distances) defines measurable tolerances. One extract from Table 3.1 shows that for FM2, the permissible 95th percentile value for Property E is 6.5 (mm) and for Property F is 2.0 (mm).

Why FM2 Matters in Real-World Projects

When you choose FM2 standard flooring, you get benefits that go far beyond smoothness. Floors built to FM2 help in:

• Equipment Efficiency & Lifespan: Level, flat surfaces cause less wear on forklifts, wheels, rails, or automation systems.
• Operational Safety: Fewer bumps or undulations reduce the chance of accidents, slipped loads, or tipping.
• Cost Savings over Time: While getting FM2 finish might cost more initially (better base preparation, more precise execution), it saves money over years in maintenance, repair, and downtime.
• Improved Usability: Floors that meet FM2 are easier to clean and maintain, which matters in large facilities.

The Process of Achieving FM2 Flooring with Midas Concrete Floor Solutions

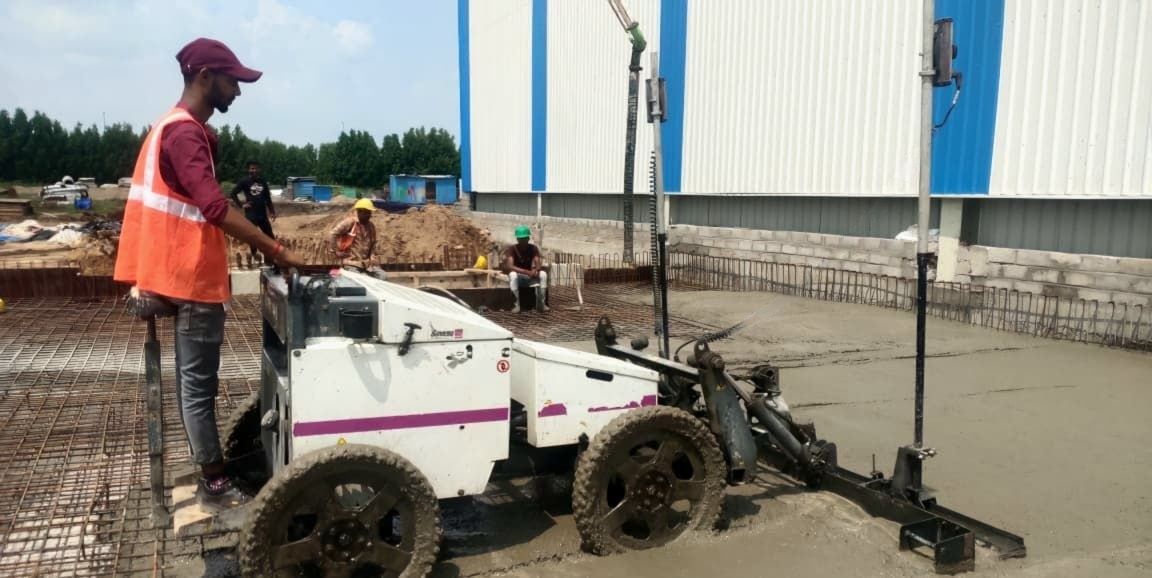

At Midas Concrete Floor Solutions, ensuring a floor meets FM2 under TR34 is part science, part craft. Here’s how we approach it (in narrative form rather than a checklist) so clients understand what is involved and what to expect. Everything begins with the site: the ground beneath must be properly prepared. The sub-base is compacted correctly, moisture barriers are installed, and any potential build-up of uneven substrate is dealt with. We then work on surveys to measure how the floor is behaving even before placing concrete — identifying where deviations might occur. The concrete mix itself is crucial. We use mixes with the right strength, minimal water content (to avoid shrinkage and cracking), and additives or reinforcements where needed. Pouring must be done carefully, keeping the concrete consistent, avoiding segregation, and using vibration tools to remove air pockets. Leveling equipment becomes very important here: laser screeds, precision screeding tools, and guided finishing helps ensure that the floor surface remains level over longer distances. After the concrete sets, finishing operations like troweling, grinding or polishing may be used to bring flatness into tighter tolerances. Quality controls are continuous. Even small departures from the required tolerances (flatness or levelness) can compromise the FM2 classification. So we survey, measure, and correct as needed.

Common Challenges & How to Overcome Them

Even for skilled flooring contractors, there are obstacles when trying to meet FM2 standard. Weather can interfere — temperature and humidity affect concrete curing, which if not managed, can cause warping or shrinkage. Delays or mistakes in base preparation can lead to uneven sub-grade, which then translates into problems up through the slab. Another challenge is balancing cost with performance. Achieving FM2 means investing in higher-precision tools, better materials, more skilled labour, and stricter supervision. Some clients may question the upfront cost, but it’s important to view FM2 as a value-add: the return comes in fewer disruptions, less maintenance, and better capacity for future equipment or shelving upgrades. Lastly, execution speed sometimes battles quality. Rushing through any phase—site prep, pouring, finishing—can lead to compromised flatness or levelness. Midas Concrete Floor Solutions emphasises planning, having the right team and tools, and allowing sufficient curing time to ensure long-term compliance.

FM2 Flooring & Compliance in Different Environments

Depending on the environment, FM2 floors may need additional considerations. For example, in cold storage, temperature swings can cause concrete to expand/contract; ensuring good joints and choosing mix designs resistant to such stresses matter. In warehouses with heavy traffic and high-reach forklifts (say over 8 to 13 meters), the demands are greater, and meeting the TR34 tolerances becomes more critical. Moreover, where cleanroom conditions or hygiene are critical (food, pharma), FM2 floors may need finishing that supports cleanability, non-dusting surfaces, and may be coupled with protective coatings or sealants.

How Midas Concrete Floor Solutions Helps You Meet TR34 FM2 Standards

What makes Midas Concrete Floor Solutions stand out is not just our understanding of TR34 and FM2, but the full delivery: from design consultation, material selection, skilled execution, through to ongoing maintenance support. We make sure clients get floors that don't just “claim” FM2 but genuinely meet the necessary tolerances. We invest in precise survey and measurement tools, use high quality concrete mixes, and have teams trained in the latest finishing and leveling techniques. We guide clients in understanding how their usage, traffic, and equipment will interact with the flooring over time, so that from day one, the floor is designed with both compliance and long-term service in mind.

Conclusion

For any industrial facility, warehouse, or logistics centre thinking about their flooring, understanding standards like TR34 is more than a technicality—it’s foundational. FM2 flooring under TR34 represents a very practical, widely applicable standard for free movement spaces, balancing performance, safety, durability, and cost. With Midas Concrete Floor Solutions as your partner, you don’t just get a floor. You get a foundation built for operational efficiency, lower maintenance costs, and long-term compliance. If you are starting a project, considering upgrades, or evaluating flooring options, aiming for FM2 compliance is a strong decision that pays off.
